Description
This item is brand-new, factory sealed.
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Direct Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. Learn More aboutGIGABYTE Direct VRM Design.
PCIe 4.0 x16 Slot
Reinforced PCIe 4.0 x16 with lower impedance.
2 x PCIe 4.0 x4 M.2 Connectors
M.2 PCIe 4.0 x4 slot with lower impedance.
DDR5 Overclocking Up to 8000 and Beyond
AORUS is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
PCIe 4.0 x4 M.2
AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel®Core™ processors.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
3% Cooler by implementing 2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components’ temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support
- Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control
- Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode
- Slope/Stair dual mode for different user scenario
- Fan Stop
- Fan can stop completely below users’ specified temperature point
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7″ |
| Depth | 6.7″ |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI Version |
|
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| DisplayPort | Yes |
| HDMI | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 2 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 96 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | HD Graphics |
| General Information | |
| Brand Name | GIGABYTE |
| Marketing Information | UNPARALLELED PERFORMANCE With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming. Direct Digital VRM Design To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. Learn More aboutGIGABYTE Direct VRM Design. PCIe 4.0 x16 Slot Reinforced PCIe 4.0 x16 with lower impedance. 2 x PCIe 4.0 x4 M.2 Connectors M.2 PCIe 4.0 x4 slot with lower impedance. DDR5 Overclocking Up to 8000 and Beyond AORUS is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. PCIe 4.0 x4 M.2 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD. GIGABYTE PerfDrive PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel ® Core™ processors. OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance. 3% Cooler by implementing 2X copper PCB Design By adopting 2X copper on PCB inner layer, it lowers the components’ temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance. SMART FAN 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Cooling Features High Current Support Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control Multiple temperature/fan speed control points for precise fan curve Dual Curve Mode Slope/Stair dual mode for different user scenario Fan Stop Fan can stop completely below users’ specified temperature point |
| Product Type | Gaming Desktop Motherboard |

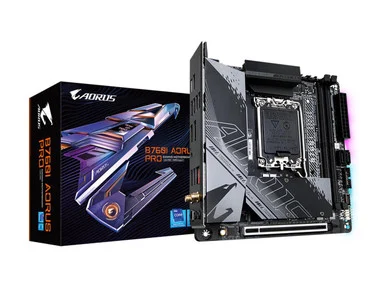

| Product Name | B760I AORUS PRO Gaming Desktop Motherboard |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B760I AORUS PRO |
| Product Model | B760I AORUS PRO |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported |
|
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Model | B760 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
