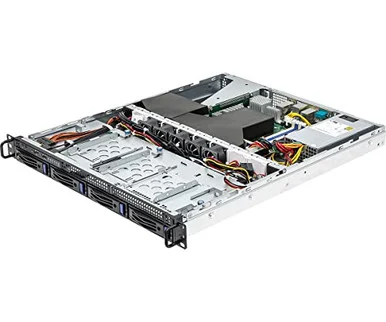

Asrock 1U4LWX570/2L2T Server Rack 1U4LWX570/2L2T

Description

This item is brand-new, factory sealed.

1U Rackmount with 400W PSU
supports AMD Ryzen 5000 Series Desktop Processors
4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each
4 Hot-swap 3.5” HDD/SSD bays, 3 fixed 2.5″ HDD/SSD bays
1 FHHL PCIe4.0 x16
On-board dual 10GbE RJ45 and dual 1GbE RJ45
Remote management (IPMI)System
Form Factor
1U RackmountSupport MB
X570D4U-2L2TFront Panel
Buttons
Power button w/ LED, UID w/LED, System resetLEDs
LANs, HDD activity, System healthI/O Ports
2 Type-A (USB 3.2 Gen1)External Drive Bay / Storage
Front Side Drive Bay
4 Hot-swap 3.5″ HDD/SSD (SATA 6Gb/s) bays
1 Slim ODD (BTO)Internal Side
3 fixed 2.5″ HDD/SSD (SATA 6Gb/s) bays
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570)
-Supports PCIe3.0 when using AMD Ryzen 3000 Series Processors with Radeon GraphicsPower Supply
Type
Single PSUOutput Watts
400WEfficiency
80-Plus GoldAC Input
100-240V, 50-60HzSystem Fan
Fan
5 PWM Easy-swap 40×28 mm fansProcessor System
CPU
supports:
AMD Ryzen 5000 Series Desktop Processors
AMD Ryzen^TM4000 G-Series Desktop Processors with Radeon^TMGraphics
AMD Ryzen^TMPRO 4000 and 3000 Series Desktop Processors
3rd Gen AMD Ryzen^TMDesktop Processors
AMD Ryzen 3000 Series Processors with Radeon GraphicsSocket
AM4 PGA 1331Chipset
AMD X570System Memory
Capacity
4 DIMM slots (2DPC)Type
288-pin DDR4 ECC and non-ECC UDIMM
-For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.DIMM Size Per DIMM
up to 32GB per DIMMDIMM Frequency
up to 3200 MHz
– AMD Ryzen 3000 Series Processors with Radeon Graphics support up to 2666 MHzVoltage
1.2V
