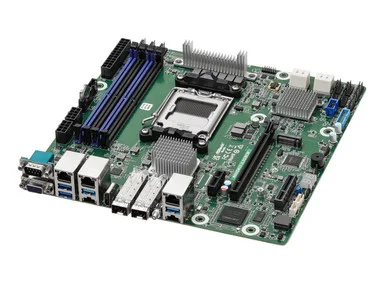

B650D4U3-2L2Q/BCM
Micro-ATX (9.6″ x 9.6″)
Supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16
1 PCIe4.0 x4, 1 PCIe4.0 x1
Supports 1 M.2 (PCIe5.0 x4)
4 SATA 6Gb/s
2 SFP28 (25GbE) by Broadcom BCM57502
2 RJ45 (1GbE) by Intel i210
1 HDMI
Remote management (IPMI)Physical Status
Form Factor
Micro-ATX
Dimensions
9.6″ x 9.6″ (244 mm x 244 mm)Processor System
CPU
Supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors
Socket
1 Socket AM5 (LGA 1718)
Thermal Design Power
Up to 170W by proper cooling solution
Chipset
AMD B650ESystem Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
48GB
Max. DIMM Frequency
5600 MHz (1DPC) 3600 MHz (2DPC)
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 x16 CPU
PCIe x 4
SLOT4: PCIe4.0 x4 FCH
PCIe x 1
SLOT7: PCIe4.0 x1 FCHOther PCIe Expansion Connectors
M.2 slot
M2_1 (PCIe5.0 x4), supports 2280/2242 form factor CPUSATA/SAS Storage
PCH Built-in Storage
AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pinEthernet
Additional Ethernet Controller
Broadcom BCM57502: 2 SFP28 (25GbE)
Intel i210: 2 RJ45 (1GbE)Server Management
BMC Controller
ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
Dedicated IPMI LAN
1 Realtek RTL8211F for dedicated management GLANGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA)
AMD Processors with Graphics:
1 HDMIRear I/O
UID Button/LED
1 UID button w/ LED
Video Port
1 DB15 (VGA), 1 HDMI
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (1GbE)
1 dedicated IPMI
Other network connector
2 SFP28 (25GbE)Internal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header
1
Speaker Header
1
Buzzer
1
Fan Header
7 (6pin) co-lay 7 (4-pin)
TPM Header
1 (13-pin, SPI)
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1
Others
1 (3-pin, 80 debug port header)
Front Lan LED Connector
1
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 (9-pin, 2 USB2.0)LED Indicators
Standby PWR LED
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
7
BMC Heartbeat LED
1System BIOS
BIOS Type
AMI UEFI BIOS 256Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5Hardware Monitor
Temperature
CPU, DDR, MB, Card Side, Chipset, 25G LAN, M.2 slot
Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_VDDC_HOST, VOLT_VDDC_AON, VOLT_5V, VOLT_12V, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12VEnvironment
Temperature
Operating temperature: 10oC – 35oC / Non-operating temperature: -40oC – 70oC
Humidity
Non-operating humidity: 20% – 90% (non-condensing)Item Dimension (L”xW”xH”)
10 x 10 x 5
Weight
4 lbs
Warranty Information
36m
