Description
This item is brand-new, factory sealed.
Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
6+2+1 Power Phase, Dr.MOS
4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
Graphics Output: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4),
1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2)
1 USB 3.2 Gen2 Type A+C (Rear),
1 USB 3.2 Gen1 Type-C (Front),
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
Phantom Gaming 2.5G LAN, 802.11ax WiFi 6E + Bluetooth
Supports ASRock Auto Driver Installer, BIOS FlashbackUnique Feature
Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 6+2+1 Power Phase, 50A Dr.MOS
Ultrafast Connectivity
– 2.5G LAN, 802.11ax Wi-Fi 6E
Module EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status CheckerCPU
– Supports AMD Socket AM5 RyzenTM8000 and 7000 Series Processors1
1The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.Chipset
– AMD B650Memory
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)1
– Max. capacity of system memory: 192GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
1Please refer to Memory Support List for more information.BIOS
– 256Mb AMI UEFI Legal BIOS with GUI supportGraphics
Integrated AMD RDNATMgraphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120HzAudio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic AudioLAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority ControlWireless LAN
– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band1support
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO
1Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode1
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode1
Chipset:
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFireTM
– 15 Gold Contact in VGA PCIe Slot (PCIE1)
1Supports NVMe SSD as boot disksStorage
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode1
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode1
– 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode1
– 4 x SATA3 6.0 Gb/s Connectors
1Supports NVMe SSD as boot disksRAID
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices1
1Requires additional M.2 NVMe expansion cards to support RAID 10USB
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
1All USB ports support ESD ProtectionConnector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header1
– 3 x Addressable LED Headers2
– 1 x CPU Fan Connector (4-pin)3
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)4
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)5
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x ThunderboltTMAIC Connector (5-pin) (Supports ASRock ThunderboltTM4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
1Supports in total up to 12V/3A, 36W LED Strip
2Support in total up to 5V/3A, 15W LED Strip
3CPU_FAN1 supports the fan power up to 1A (12W).
4CPU_FAN2/WP supports the fan power up to 2A (24W).
5CHA_FAN1-3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1-3/WP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O
– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Type-A Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFI
Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Phantom Gaming LAN Software
– ASRock Polychrome SYNC1
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
1These utilities can be downloaded from ASRock Live Update and APP Shop.Accessories
– 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 2 x SMA WiFi Antenna Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 1 x Plastic Cover for Wi-Fi Module
– 3 x Screws for M.2 SocketsForm Factor
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
– Microsoft Windows 10 64-bit / 11 64-bit
Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)Item Dimension (L inchxW inchxH inch)
11 x 11 x 3
Weight
3 lbs
Warranty Information
3 Years
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of M.2 Interfaces | 3 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6″ |
| Depth | 9.6″ |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard |
|
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI Version |
|
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| HDMI | Yes |
| Number of USB 2.0 Ports | 4 |
| Total Number of USB Ports | 8 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Speed Supported | 6000 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| General Information | |
| Brand Name | ASRock |
| Product Type | Gaming Desktop Motherboard |

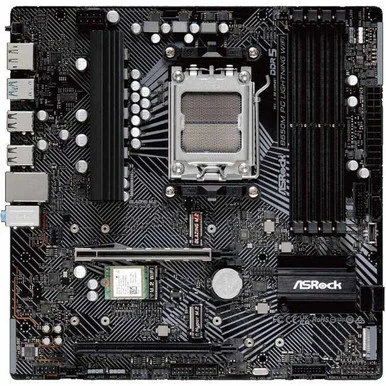

| Product Name | B650M PG LIGHTNING WIFI Gaming Desktop Motherboard |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | B650M PG LIGHTNING WIFI |
| Product Model | B650M PG LIGHTNING WIFI |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Multi GPU Supported | CrossFire |
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Model | B650 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
