Description
This item is brand-new, factory sealed.

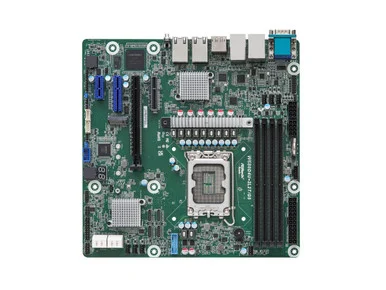

Micro-ATX (9.6″ x 9.6″)
Supports Intel Core 14th Gen, 13th & 12th Gen Intel Core series processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
Supports 1 M.2 (PCIe3.0 x4)
2 RJ45 (10GbE) by Intel X710
2 RJ45 (1GbE) by Intel i210
Up to 8 SATA 6Gb/s
1 VGA, 1 HDMI, 1 DisplayPort
Remote Management (IPMI)Physical Status
Form Factor
Micro-ATXProcessor System
CPU
Supports Intel CoreTM14th Gen, 13th and 12th Gen Intel CoreTMseries processors
Socket
Single Socket LGA 1700
Thermal Design Power
125W
Chipset
Intel W680System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R)
Voltage
1.1VPCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 x16 (CPU)
PCIe x 4
SLOT7: PCIe4.0 x4 (CPU)
PCIe x 1
SLOT4: PCIe3.0 x1 (PCH)Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4) (PCH), support 2280/2260/2242/2230 form factor
OCuLink
1 OCuLink (PCIe4.0 x4) (CPU)
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) (PCH)
2 OCuLink (PCIe4.0 x4) (PCH)
Note: OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated.SATA/SAS Storage
PCH Built-in Storage
Intel W680 (up to 8 SATA 6Gb/s, RAID 0/1/5/10):
4 SATA 7-pin, 1 OCuLink for SATAEthernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X710
2 RJ45 (1GbE) by Intel i210Server Management
BMC Controller
ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211FGraphics
Controller
ASPEED AST2600:
1 DB15 (VGA)
Intel Integrated Processor Graphics:
1 HDMI, 1 DisplayPortRear I/O
UID Button/LED
1 button w/ LED
VGA Port
1 DB15 (VGA), 1 HDMI, 1 DisplayPort
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
2 Type A (USB3.2 Gen1)
RJ45
2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMIInternal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header
1
Speaker Header
1 (4-pin)
Buzzer
1
Fan Header
7 (4-pin)
Thermal Sensor Header
1
TPM Header
1 (13-pin, SPI)
SGPIO Header
1
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
Others
1 (4-pin, LAN3/LAN4 LED)
ME/SPS Recovery
1
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header
1 (9-pin, 2 USB2.0)
NMI Header
1LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1System BIOS
BIOS Type
AMI 256 Mb SPI Flash ROM
BIOS Features
Plug and Play(PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flashHardware Monitor
Temperature
CPU, MB, Card side, VR, M.2, X710, TR Temperature sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, VCCSA, BAT, 3V, 5V, 12VSupported OS
OS
Windows 10 (64bit)
Windows 11 (64 bit)Environment
Temperature
Operation temperature: 10oC to 35oC / Non operation temperature: -40oC to 70oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)Item Dimension (L inchxW inchxH inch)
12 x 12 x 3
Weight
4.00 lb
Warranty Information
3 Years
