Description
This item is brand-new, factory sealed.

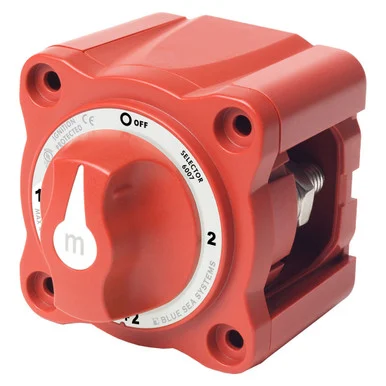

Blue Sea Systems m-Series Mini Selector Battery Switch – Red
Model: 6007-BSS
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8″ (M10) ring terminals
- 7/8″ (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface, rear, or front panel mounting options
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Ignition protected—safe for installation aboard gasoline powered boats
- Make before break contact design allows switching between battery banks without power interruption
Switches isolated battery banks to all loads or combines battery banks to all loads
Specifications
| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32vDC |
| Stud Size | 3/8″ |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8″ – 16 (M10) |
Features
Certifications & Standards:
- CE
- UL 1107
- UL 1500
- SAE J1171
- IP66
- American Boat and Yacht Council (ABYC)
Additional Information:
- Make before break contact design allows switching between battery banks without power interruption.
- Ignition protected-safe for installation aboard gasoline powered boats.
- Case design allows surface, front panel, or rear panel mounting.
- Isolating cover with snap-on sections protects rear contacts.
- 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals.
- 7/8″ (22.22mm) stud length to accept multiple cable terminals.
- Ideal for marine or RV applications.
- All non-corrosive marine grade metals.
- Molded in durable reinforced polycarbonate.
- Tactile textures indicate knob position by feel only.
- Label with international ON/OFF legends.
- Removable key or knob remains positively retained.
- ICON label set included for circuit identification.
- Cranking Rating: 10 sec.: 1,500 Amps
- Continuous Rating: 300 Amps
- Terminal Stud Size: 3/8″-16 (M10)
- Cranking Rating: 1 min.: 775 Amps
- Intermittent Rating: 5 min.: 500 Amps
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Cable Clearance For 4/0 AWG Cables: 1.12″ (28.4mm)
