Description
This item is brand-new, factory sealed.

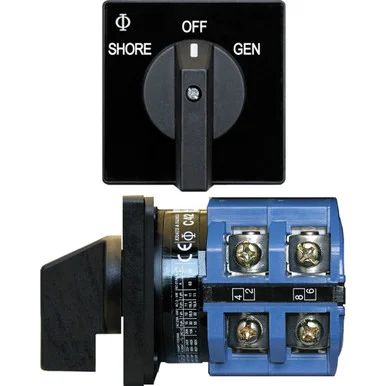

Blue Sea Systems AC Rotary Switch – OFF + 2 Positions 120V AC 65A
Model: 9011-BSS
- Switches 2 – 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16″ (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function – One hand operation
- UL listed
Specifications
| Positions | 2 + OFF |
| Source Selection | 2 |
| Nominal Voltage | 120v |
| Poles | 2 |
| Load Circuits Out | 1 |
| Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. | 65A |
| Maximum Voltage | 600V AC |
| Source In | 2 |
| Dimensions hxwhd | 2.52in x 2.52in x 2.41in |
