Description
This item is brand-new, factory sealed.

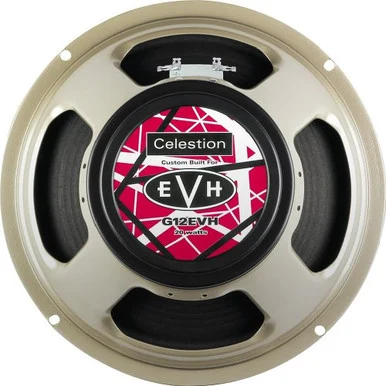

Throughout his career, whether in the studio or on the stage, the Celestion 20-watt Greenback’ has played an essential role to Edward Van Halen in making the tones that rewrote the book on guitar sound.
When it came time to select speakers for his new EVH Brand 5150-III signature amp, there was only one choice – Celestion.The Heritage Series G12M guitar speaker faithfully reproduces the sonic qualities of the original ’60s version Greenback used to make EVH tone from day one. With the addition of a black rear can featuring the EVH logo and his unmistakable red, white and black stripes, the G12EVH was born. Unmistakable look, but more importantly unmistakable tone.
* Nominal diameter: 305mm / 12-in
* Power rating: 20W
* Rated impedance: 8 Ohms
* Sensitivity: 96dB
* Chassis type: Pressed steel
* Magnet type: Ceramic
* Magnet weight: 0.99kg / 35oz
* Voice coil diameter: 1.75-in / 44mm
* Voice coil material: Round copper
* Frequency range: 75-5000Hz
* Resonance frequency, Fs: 75Hz
* DC resistance, Re: 6.57 Ohms; & 12.13 Ohms;
* Cut-out diameter: 283mm / 11.1-in
* Diameter: 309mm / 12.2-in
* Magnet structure diameter: 150mm / 5.9-in
* Mounting hole dimensions: 7.9mm / 0.31-in Diameter
* Mounting hole PCD: 297mm / 11.7-in
* Number of mounting holes: 4
* Chassis depth (inc gasket): 91mm / 3.56-in
* Magnet depth: 39mm / 1.54-in
* Overall depth: 130mm / 5.1-in
* Unit weight: 3.6kg / 7.9lb [Each]
Specs
| Physical Characteristics | |
| Weight (Approximate) | 7.94 lb |
| Product Color |
|
| Color Family | Dual Color |
| Speaker Diameter | 10.14 ft |
| Depth | 5.12″ |
| General Information | |
| Brand Name | Celestion |
| Marketing Information | Throughout his career, whether in the studio or on the stage, the Celestion 20-watt ‘Greenback’ has played an essential role to Edward Van Halen in making the tones that rewrote the book on guitar sound. When it came time to select speakers for his new EVH Brand 5150-III signature amp, there was only one choice – Celestion.The Heritage Series G12M guitar speaker faithfully reproduces the sonic qualities of the original ’60s version Greenback used to make EVH tone from day one. With the addition of a black rear can featuring the EVH logo and his unmistakable red, white and black stripes, the G12EVH was born. Unmistakable look, but more importantly unmistakable tone. |
| Product Type | Speaker |
| Product Name | Guitar Speakers |
| Manufacturer | Celestion Consumer Division |
| Manufacturer Part Number | T5658 |
| Product Model | G12 EVH |
| Product Line | Heritage |
| Technical Information | |
| Minimum Frequency Response | 75 Hz |
| Maximum Frequency Response | 5 kHz |
| Sensitivity | 96 dB |
| Application/Usage | Guitar |
| Impedance | 15 Ohm |
| RMS Output Power | 20 W |
