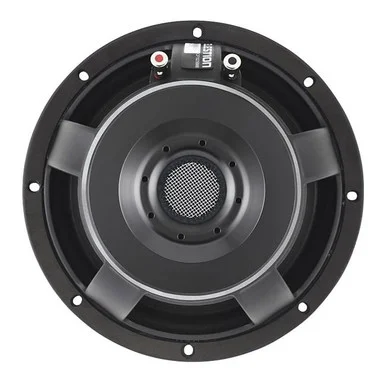

CELESTION T6477 Cf1025bmb 10 300w Woofer

Description

This item is brand-new, factory sealed.

*Continuous power rating: 600W *Sensitivity: 92.5dB *Voice coil diameter: 2.5-in *Nominal diameter: 254mm / 10in *Power rating: 300W *Continuous power rating: 600W *Rated impedance: 8 Ohms; *Sensitivity: 92.5dB *Frequency range: 45-5000Hz *Chassis type: Cast aluminium *Magnet type: Ferrite *Magnet weight: 1.42kg / 50oz *Voice coil diameter: 64mm / 2.5-in *Voice coil material: Round copper *Former material: Polyimide *Cone material: Glass loaded paper (weather-resistant) *Surround material: Elastomer *Suspension: Single *Gap height (Hg): 8mm / 0.31-in *VC winding height (Hvc): 17.3mm / 0.68-in
Parameters *Sd: 346.36cm squared / 53.69-in squared *Fs: 40.9Hz *Mms: 55.865g / 1.97oz *Qms: 7.952 *Qes: 0.371 *Qts: 0.355 *Re: 6.04 Ohms; *Vas: 46.1l / 1.63 ft cubed *BI: 15.28Tm *Cms: 0.271 mm/N *Rms: 1.804mm/N *Le (at 1kHz): 1.15mH *Xmax: 6.65mm / 0.26-in
Mounting Information *Overall diameter: 265mm / 10.43-in *Overall depth: 124.5mm / 4.9-in *Cut-out diameter: 233.8mm / 9.2-in *Mounting hole dimensions: 8×6.5mm / 0.31×0.26-in *Number of mounting holes: 8 *Mounting hole PCD: 244.5-247.5mm / 9.63-9.75-in *Unit weight: 4.3kg / 9.5lb
Packed Dimensions & Weight *Single pack size W x D x H: 306mm x 306mm x 155mm / 12-in x 12-in x 6.1-in *Single pack weight: 5.5kg / 12.1lb *Multi pack qty: 8 *Multi pack size W x D x H: 555mm x 520mm x 290mm / 21.9-in x 20.5-in x 11.4-in *Multi pack weight: 45kg / 99lb
Frequency Response and Impedance Curves [Each]
