Description
This item is brand-new, factory sealed.
Q3

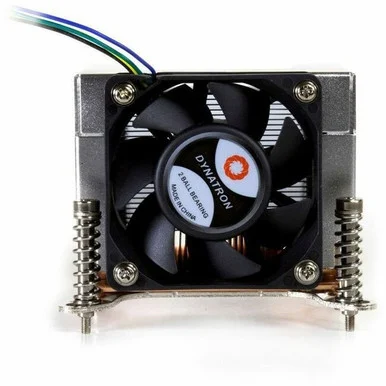

Recommend for Intel Alder Lake S Processor, Socket LGA 1700, Copper Heatsink with Skiving Fins. Support 125 Watts CPU Power Heat Dissipation for 1U&Up Server Solution.CPU Support
IntelCPU Socket
LGA 1700Solution
1U ServerMaterial
Copper Heatsink with Skiving FinsFan Dimension
80.0 x 15.0 mmSpeed
At Duty Cycle 0-20%: 1000+/-200 RPM
At Duty Cycle 50%: 3500+/-10% RPM
At Duty Cycle 100%: 7000 RPMBearing
Double BallRated Voltage
12VPower
At Duty Cycle 0-20%: 0.60 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 19.2 WAir Flow
At Duty Cycle 0-20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 22.28 CFMNoise Level
At Duty Cycle 0-20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 59.14 dBAStatic Pressure
At Duty Cycle 0-20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 74.18 mm-H2OLead Wire Pin Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)Item Dimension (L”xW”xH”)
6 x 5 x 2
Weight
1.2 lbs
Warranty Information
1 year
Features
Application/Usage:
Processor
CPU
Server
Country of Origin:
China
