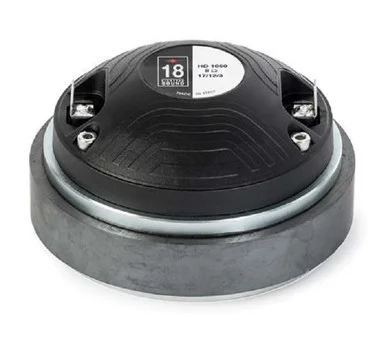

Eighteen Sound HD1050-8 Hf Compression Driver W/1 Inch Exit Throat 8 Ohms High Power

Description

This item is brand-new, factory sealed.

* 107 dB SPL 1W / 1m average sensitivity
* 44 mm (1 3/4 inch) voice coil diameter
* 100 Watt program power handling
* Titanium dome over PEN suspension
* Proprietary phase plug design
* Throat Diameter 25.4 mm (I in)
* Rated Impedance 8 Ohm
* D.C. Resistance 5.3 Ohm
* Minimum Impedance 7 Ohm at 4000Hz
* Program power (8) 100 W above 1.6 kHz
* Sensitivity (9) 107 dB
* Frequency Range 1600Hz – 20kHz
* Recomm. Xover Frequency 1400Hz (12dB/oct slope)
* Diaphragm material Titanium – PEN
* Voice Coil Diameter 44.4 mm (1 3/4 in)
* Voice Coil winding material Edge-wound aluminum
* Magnet material Ferrite
* Flu/dDDennsiityy 1.6 T
* Dl Factor 74 N/A
* Polarity ratucltfige on + terminal gives positive pressure
* fyer-all diameter 110 mm (4.3 in)
* `N.of mounting holes and bolt 4 M6–holes 90 at 0 76 mm (3 in)
* Bolt circle diameter 76 mm (3 in)
* Fatal depth 60.5 mm (2.38 in)
* Net weight 1.6 Kg (3.52 lb)
* Shipping weight 1.7 Kg (3.74 Ib)
* CardBoard Packaging dimensions 110×1 10×63 mm (4.3×4.3×2.5 in)
