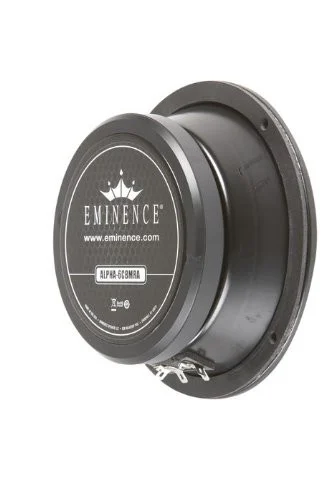

Eminence ALPHA6CBMRA 6.5 100w Chassis Midrange Loud

Description

This item is brand-new, factory sealed.

This table charts the specifications for the ALPHA6ABMR speaker
* Nominal Basket Diameter: 6-in , 165 mm.
* Nominal Impedance: 8 Ohms.
* Power Rating:
* Watts: 100 W.
* Music Program: 200 W.
* Resonance: 407 Hz.
* Usable Frequency Range: 400 Hz – 5 kHz.
* Sensitivity: 97.8 dB.
* Magnet Weight: 16 oz..
* Gap Height: 0.25-in , 6.4 mm.
* Voice Coil Diameter: 1.5-in , 38 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 407 Hz.
* DC Resistance (Re): 5.26 Ohms.
* Coil Inductance (Le): 0.38m H.
* Mechanical Q (Qms): 6.04.
* Electromagnetic Q (Qes): 1.74.
* Total Q (Qts): 1.35.
* Compliance Equivalent Volume (Vas): 0.45 liters / 0.02 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 19 cc.
* Mechanical Compliance of Suspension (Cms): 0.02 mm/N.
* BL Product (BL): 7.86 T-M.
* Diaphragm Mass Inc. Airload (MMs): 8 grams.
* Efficiency Bandwidth Product (EBP): 234.
* Maximum Linear Excursion (Xmax): 1.5 mm.
* Surface Area of Cone (Sd): 126.7 cm2.
* Maximum Mechanical Limit (Xlim): 3 mm.
———————————–
Recommended Enclosure Volume;
* Sealed: N/a.
* Vented: – liters / – cu.ft..
* Driver Volume Displaced: 0.014 cu.ft. / 0.4 liters.
* Overall Diameter: 6.59-in , 167.4 mm.
* Baffle Hole Diameter: 5.69-in , 144.5 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: Yes.
* Mounting Holes Diameter: 0.23-in , 5.8mm.
* Mounting Holes B.C.D.: 6.06-in , 153.9mm.
* Depth: 2.2-in , 55.9 mm.
* Net Weight: 3.7 lbs, 1.68 kg.
* Shipping Weight: 4.4 lbs, 2 kgs.
* Materials of Construction.
* Coil Construction: Copper voice coil.
* Coil Former: Polyimide former.
* Magnet Composition: Ferrite magnet.
* Core Details: Non-vented core.
———————————–.
* Basket Materials: Pressed steel basket.
* Cone Composition: Paper cone.
* Cone Edge Composition: Cloth cone edge.
* Dust Cap Composition: Solid composition paper dust cap.
