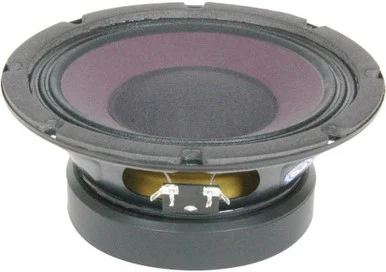

This table charts the specifications for the BETA-8CX speaker
* Nominal Basket Diameter: 8-in , 203 mm.
* Nominal Impedance: 8 Ohms.
* Power Rating:
* Watts: 250 W.
* Music Program: 500 W.
* Resonance: 62 Hz.
* Usable Frequency Range: 95 Hz – 3.3 kHz.
* Sensitivity: 92.9 dB.
* Magnet Weight: 38 oz..
* Gap Height: 0.312-in , 7.9 mm.
* Voice Coil Diameter: 2-in , 51 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 62 Hz.
* DC Resistance (Re): 5.37 Ohms.
* Coil Inductance (Le): 0.67m H.
* Mechanical Q (Qms): 6.57.
* Electromagnetic Q (Qes): 0.31.
* Total Q (Qts): 0.29.
* Compliance Equivalent Volume (Vas): 21.43 liters / 0.76 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 67.2 cc.
* Mechanical Compliance of Suspension (Cms): 0.35 mm/N.
* BL Product (BL): 11.21 T-M.
* Diaphragm Mass Inc. Airload (MMs): 19 grams.
* Efficiency Bandwidth Product (EBP): 201.
* Maximum Linear Excursion (Xmax): 3.2 mm.
* Surface Area of Cone (Sd): 210 cm2.
* Maximum Mechanical Limit (Xlim): 6.9 mm.
———————————–
Recommended Enclosure Volume;
* Sealed: 3.4-9.91 liters / 0.12-0.35 cu.ft..
* Vented: 7.08-16.99 liters / 0.25-0.6 cu.ft..
* Driver Volume Displaced: 0.028 cu.ft. / 0.79 liters.
* Overall Diameter: 8.24-in , 209.3 mm.
* Baffle Hole Diameter: 7.13-in , 181.1 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: Yes.
* Mounting Holes Diameter: 0.22-in , 5.6mm.
* Mounting Holes B.C.D.: 7.75-in , 196.9mm.
* Depth: 3.5-in , 88.9 mm.
* Net Weight: 6.8 lbs, 3.08 kg.
* Shipping Weight: 7.5 lbs, 3.4 kgs.
* Materials of Construction.
* Coil Construction: Copper voice coil.
* Coil Former: Kapton former.
* Magnet Composition: Ferrite magnet.
* Core Details: Tapered Coax.
———————————–.
* Basket Materials: Pressed steel basket.
* Cone Composition: Paper Cone.
* Cone Edge Composition: Sealed cloth cone edge.
* Dust Cap Composition: Zurette dust cap.
Specs
| Physical Characteristics | |
| Product Material |
|
| Weight (Approximate) | 6.80 lb |
| Depth | 3.50″ |
| Warranty | |
| Limited Warranty | 7 Year |
| General Information | |
| Brand Name | Eminence |
| Marketing Information | Recommended for professional audio mid-range reproduction in sealed enclosures. Also suitable for mid-bass or floor monitor applications in vented 2-way cabinets. |
| Product Type | Midrange |
| Product Name | BETA-8CX Midrange |
| Manufacturer | Eminence Speaker, LLC |
| Manufacturer Part Number | BETA8CX |
| Product Model | BETA-8CX |
| Technical Information | |
| PMPO Output Power | 500 W |
| Minimum Frequency Response | 95 Hz |
| Maximum Frequency Response | 3.30 kHz |
| Sensitivity | 93 dB |
| Midrange Driver Size | 8″ |
| Application/Usage | Indoor/Outdoor |
| Impedance | 8 Ohm |
| RMS Output Power | 250 W |
| Midrange Driver Material | Paper |
