Description
This item is brand-new, factory sealed.
Recommended for professional audio in a sealed mid-range, vented mid-bass, and bass enclosure. Also suitable for bass guitar.
Features
Country of Origin:
United States
Sale!
nominal basket diameter10″, 254mm
nominal impedance:8 ohms
power rating: 500w
music program: 1000w
resonance 46hz
usable frequency range102hz-2khz
sensitivity
97
magnet weight80 oz.
gap height0.375″, 9.53mm
voice coil diameter 3″, 76.2mm
thiele & small parameters
resonant frequency (fs)46hz
dc resistance (re)6.50
coil inductance (le)1.15mh
mechanical q (qms)10.10
electromagnetic q (qes)0.20
total q (qts)0.20
compliance equivalent volume (vas)52.2 liters / 1.8 cu.Ft.
peak diaphragm displacement volume (vd)110cc
mechanical compliance of suspension (cms)0.31mm/n
bl product (bl)18.8 t-m
diaphram mass inc. Airload (mms)38 grams
efficiency bandwidth product (ebp)230
maximum linear excursion (xmax)3.2mm
surface area of cone (sd)344.9 cm2
maximum mechanical limit (xlim)10.9mm
mounting information
recommended enclosure
sealed 7-9.9 liters/0.25-0.35 cu.Ft.
vented 12-28 liters/0.43-1 cu.Ft.
overall diameter10.25″, 260.4mm
baffle hole diameter9.13″, 231.8mm
front sealing gasketfitted as standard
rear sealing gasketfitted as standard
mounting holes diameter0.28″, 7.1mm
mounting holes b.C. D.9.63″, 244.5mm
depth 4.33″, 110mm
net weight15.3 lbs., 6.9 kg
shipping weight16.4 lbs., 7.4 kg
materials of construction
coil constructioncopper voice coil
coil former polyimide former
magnet compositionferrite magnet
core detailsvented core
basket materialsdie-cast aluminum basket
cone compositionpaper cone
cone edge compositioncloth cone edge
dustcap composition solid composition paper dust cap

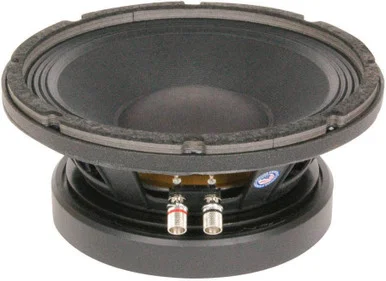

Eminence Professional KAPPA PRO-10A Woofer – 500 W RMS – 1000 W PMPO
Original price was: $164.99.$41.23Current price is: $41.23.
