Description
This item is brand-new, factory sealed.

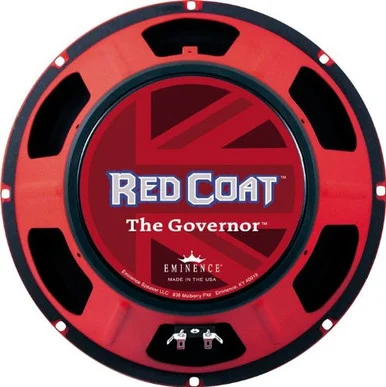

This table charts the specifications for the THE GOVERNORT 16 speaker
* Nominal Basket Diameter: 12-in , 305 mm.
* Nominal Impedance: 16 Ohms.
* Power Rating:
* Watts: 75 W.
* Music Program: N/A.
* Resonance: 103 Hz.
* Usable Frequency Range: 80 Hz – 5 kHz.
* Sensitivity: 102.2 dB.
* Magnet Weight: 56 oz..
* Gap Height: 0.312-in , 7.9 mm.
* Voice Coil Diameter: 1.75-in , 44 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 103 Hz.
* DC Resistance (Re): 14 Ohms.
* Coil Inductance (Le): 0.7m H.
* Mechanical Q (Qms): 12.51.
* Electromagnetic Q (Qes): 0.66.
* Total Q (Qts): 0.63.
* Compliance Equivalent Volume (Vas): 32.8 liters / 1.16 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 64.4 cc.
* Mechanical Compliance of Suspension (Cms): 0.09 mm/N.
* BL Product (BL): 19.5 T-M.
* Diaphragm Mass Inc. Airload (MMs): 28 grams.
* Efficiency Bandwidth Product (EBP): 157.
* Maximum Linear Excursion (Xmax): 1.24 mm.
* Surface Area of Cone (Sd): 519.5 cm2.
* Maximum Mechanical Limit (Xlim): N/A.
———————————–
Recommended Enclosure Volume;
* Sealed: Acceptable.
* Vented: Acceptable.
* Driver Volume Displaced: 0.079 cu.ft. / 2.25 liters.
* Overall Diameter: 12.03-in , 305.6 mm.
* Baffle Hole Diameter: 11.07-in , 281.2 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: Yes.
* Mounting Holes Diameter: 0.25-in , 6.4mm.
* Mounting Holes B.C.D.: 11.59-in , 294.4mm.
* Depth: 5.2-in , 132.1 mm.
* Net Weight: 10.8 lbs, 4.9 kg.
* Shipping Weight: 12.6 lbs, 5.72 kgs.
* Materials of Construction.
* Coil Construction: Copper voice coil.
* Coil Former: Nomex former.
* Magnet Composition: Ferrite magnet.
* Core Details: Non-vented core.
———————————–.
* Basket Materials: Pressed steel basket.
* Cone Composition: Paper cone.
* Cone Edge Composition: Paper cone edge.
* Dust Cap Composition: Zurette dust cap.
Features
Additional Information:
Driver Size: 12″
Driver Material: Paper
Country of Origin:
United States
