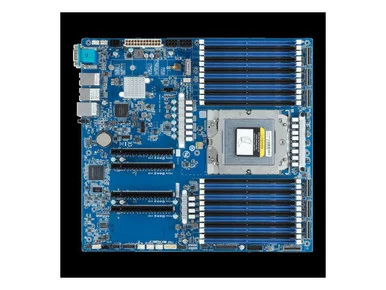

Gigabyte Technology MZ33AR0 E-ATX Server Motherboard for AMD EPYC 9004

Description

This item is brand-new, factory sealed.

Motherboard – AMD EPYC 9004 – E-ATX UP
Single AMD EPYC 9004 Series Processors (with AMD 3D V-Cache Technology)
12-Channel RDIMM DDR5, 24 x DIMMs
2 x 10Gb/s LAN ports via Broadcom BCM57416
2 x MCIO 8i connectors with PCIe Gen5 x8 or SATA interface
4 x MCIO 8i connectors with PCIe Gen5 x8 interface
1 x MCIO 8i connector with PCIe Gen4 x8 interface
1 x M.2 slot with PCIe Gen4 x4 interface
4 x PCIe Gen5 x16 expansion slotsForm Factor
E-ATXCPU
AMD EPYC^TM9004 Series Processors
AMD EPYC^TM9004 Series Processors with AMD 3D V-Cache^TMTechnology
Single processor, 5nm technology
Up to 128 cores, 256 threads
cTDP up to 400WSocket
1 x LGA 6096
Socket SP5Chipset
System on ChipMemory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)LAN
2 x 10Gb/s LAN ports (1 x Broadcom BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LANVideo
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920×1200 at 60Hz 32bppAudio
N/AStorage Interface
2 x MCIO 8i connectors for 4 x Gen5 NVMe or 16 x SATA 6Gb/s
4 x MCIO 8i connectors for 8 x Gen5 NVMe
1 x MCIO 8i connector for 2 x Gen4 NVMeRAID
N/AExpansion Slots
Slot_7: PCIe x16 (Gen5 x16) slot
Slot_6: PCIe x16 (Gen5 x16) slot
Slot_4: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen5 x16) slot
1 x M.2 slot:
– M-key
– PCIe Gen4 x4
– Supports 2280/22110 cards
Note: Total 7 x MCIO 8i connectors:
– 2 x MCIO 8i (PCIe Gen5 x8 or SATA) connectors
– 4 x MCIO 8i (PCIe Gen5 x8) connectors
– 1 x MCIO 8i (PCIe Gen4 x8) connector
Note: Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
7 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM headerRear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LEDTPM
1 x TPM header with SPI interface
– Optional TPM2.0 kit: CTM010OS Compatibility
Please refer to OS compatibility table in support pageBoard Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP SettingsPSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connectorOperating Properties
Operating temperature: 10^oC to 40^oC
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40^oC to 60^oC
Non-operating humidity: 20%-95% (non-condensing)Item Dimension (L inchxW inchxH inch)
15 x 13 x 4
Weight
6.00 lb
Warranty Information
1 year
