Description
This item is brand-new, factory sealed.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design 5+2+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+1 phases digital PWM + Low RDS(on) MOSFETs design to support AMD’s new generation CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
- STEP 1:Plug 24pin & 8pin power supply cable on motherboard
- STEP 2:Download motherboard BIOS file and rename to “”gigabyte.bin”” , save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
- STEP 3:Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
- Cooling Features
- High Current Support:Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control:Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode:Slope/Stair dual mode for different user scenario
- Fan Stop:Fan can stop completely below users’ specified temperature point
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of M.2 Interfaces | 1 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7″ |
| Depth | 6.7″ |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Interfaces/Ports | |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI Version |
|
| DisplayPort | Yes |
| HDMI | Yes |
| Number of USB 2.0 Ports | 3 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 2 |
| Memory Speed Supported |
|
| Memory Form Factor |
|
| Maximum Memory Supported | 96 GB |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | Radeon Graphics |
| General Information | |
| Brand Name | GIGABYTE |
| Marketing Information | Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. Digital VRM Design 5+2+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs GIGABYTE UD series motherboards use a 5+2+1 phases digital PWM + Low RDS(on) MOSFETs design to support AMD’s new generation CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard. Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. 802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! STEP 1: Plug 24pin & 8pin power supply cable on motherboard STEP 2: Download motherboard BIOS file and rename to “”gigabyte.bin”” , save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically. Smart Fan 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Cooling Features High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control: Multiple temperature/fan speed control points for precise fan curve Dual Curve Mode: Slope/Stair dual mode for different user scenario Fan Stop: Fan can stop completely below users’ specified temperature point |
| Product Type | Gaming Desktop Motherboard |

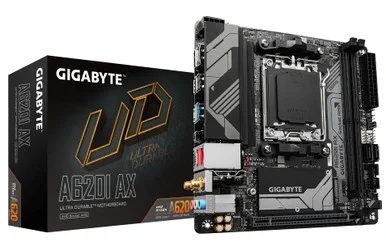

| Product Name | Ultra Durable A620I AX Gaming Desktop Motherboard |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | A620I AX |
| Product Model | A620I AX |
| Product Line | Ultra Durable |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Processor Supported |
|
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Model | A620 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Gigabit Ethernet | Yes |
| Audio | |
| Audio Channels | 7.1 |
