Description
This item is brand-new, factory sealed.

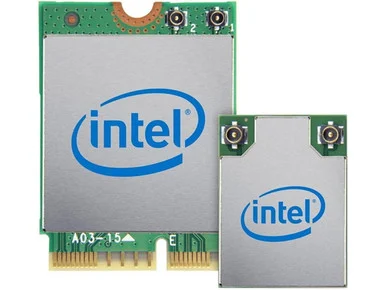

Intel Networking AX411.NGWG.NV WiFi 6E AX411 Gig+ 2230 DCT 2×2 AX R2 6GHz+BT No vPro BulkEssentials
Product Collection
Intel Wi-Fi 6E (Gig+) Series
Code Name
Products formerly Garfield Peak
Operating Temperature Range
0oC to 80oC
Operating Temperature (Maximum)
80oC
Operating Temperature (Minimum)
0oC
Supported Operating Systems
Windows 11, 64-bit, Windows 10, 64-bit, Linux
Antenna
2×2Networking Specifications
TX/RX Streams
2×2 (Intel Double Connect Technology)
Bands
2.4, 5, 6 GHz (160MHz)
Max Speed
3.0 Gbps
Wi-Fi CERTIFIED
Wi-Fi 6E (802.11ax)
Compliance
FIPS, FISMA
Integrated Bluetooth
Yes
Bluetooth Version
5.3Package Specifications
Board Form Factor
M.2 2230, M.2 1625
Package Size
22mm x 30mm x 2.4mm, 16mm x 25mm x 2.0mm
System Interface Type
M.2: CNVio2Advanced Technologies
MU-MIMO
Yes
Orthogonal Frequency-Division Multiple Access (OFDMA)
Yes
Supported Under Intel vPro Technology
YesItem Dimension (L”xW”xH”)
11 x 9 x 2
Weight
2 lbs
Warranty Information
1 Year Limited
Specs
| Physical Characteristics | |
| Weight (Approximate) | 0.10 oz |
| Interfaces/Ports | |
| Host Interface | M.2 |
| General Information | |
| Brand Name | Intel |
| Product Type | Wi-Fi/Bluetooth Combo Adapter |
| Product Name | Wi-Fi 6E AX411 Gig+ |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | AX411.NGWG.NV |
| Product Model | AX411 |
| Product Series | Gig+ |
| Technical Information | |
| ISM Band | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Band | Yes |
| UNII Maximum Frequency | 6 GHz |
| Wi-Fi Generation | Wi-Fi 6E |
| Network Band | Tri Band |
| Wireless Transmission Speed | 2.40 Gbit/s |
| Bluetooth Standard | Bluetooth 5.3 |
