Description
This item is brand-new, factory sealed.

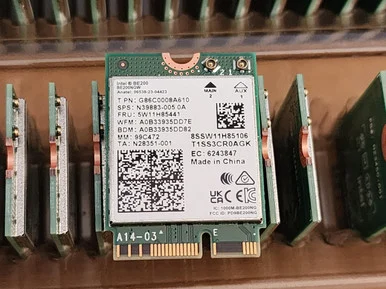

Intel Wi-Fi 7 BE200, 2230, 2×2 BE+BT, No vProEssentials
Product Collection
Intel Wi-Fi 7 Series
Operating Temperature Range
0oC to 80oC
Max Operating Temperature
80oC
Minimum Operating Temperature
0oC
Supported Operating Systems
Windows 11, Windows 10, Linux
Antenna
2×2Networking Specifications
TX/RX Streams
2×2, 320 MHz, 4K QAM
Bands
2.4, 5, 6 GHz
Max Speed
5.8 Gbps
Wi-Fi CERTIFIED
Expected to align with official WFA certification availability
Compliance
FIPS
Bluetooth Version
5.4Advanced Technologies
MU-MIMO
Yes
Orthogonal Frequency-Division Multiple Access (OFDMA)
Yes
Intel Smart Connect Technology
No
Supported Under Intel vPro Technology
YesItem Dimension (L inchxW inchxH inch)
10 x 9 x 2
Weight
4.2 lbs
Specs
| Physical Characteristics | |
| Form Factor | M.2 2230 |
| Interfaces/Ports | |
| Host Interface | PCI Express |
| General Information | |
| Brand Name | Intel |
| Product Type | Wi-Fi/Bluetooth Combo Adapter |
| Product Name | Wi-Fi 7 BE200, 2230, 2×2 BE+BT, No vPro |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | BE200.NGWG.NV |
| Product Model | BE200 |
| Technical Information | |
| ISM Band | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Band | Yes |
| UNII Maximum Frequency | 6 GHz |
| Wi-Fi Generation | Wi-Fi 7 |
| Maximum Data Transfer Rate | 5.80 Gbit/s |
| Bluetooth Standard | Bluetooth 5.4 |
