Description
This item is brand-new, factory sealed.

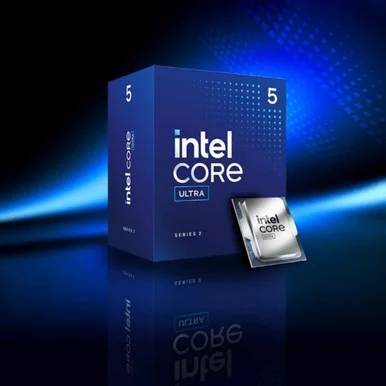

Intel CPU BX80768225F Ultra5 225F 6Performance-core/4Efficient-core/10Threads 3.3GHz 20M LGA1851 RetailEssentials
Product Collection
Intel Core Ultra Processors (Series 2)
Code Name
Products formerly Arrow Lake
Vertical Segment
Desktop
Processor Number
225F
Overall Peak TOPS (Int8)
19CPU Specifications
Total Cores
10
Number of Performance-cores
6
Number of Efficient-cores
4
Number of Low Power Efficient-cores
0
Total Threads
10
Max Turbo Frequency
4.9 GHz
Performance-core Max Turbo Frequency
4.9 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.3 GHz
Efficient-core Base Frequency
2.7 GHz
Cache
20 MB Intel Smart Cache
Total L2 Cache
22 MB
Processor Base Power
65 W
Maximum Turbo Power
121 W
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
AI Software Frameworks Supported by CPU
OpenVINO WindowsML DirectML ONNX RT WebNN
CPU Lithography
TSMC N3BSupplemental Information
Marketing Status
Launched
Launch Date
Q125
Embedded Options Available
No
Use Conditions
PC/Client/TabletMemory Specifications
Max Memory Size (dependent on memory type)
256 GB
Memory Types
Up to DDR5 6400 MT/s
Max Number of Memory Channels
2
ECC Memory Supported
NoGPU Specifications
Graphics Output
n/a
Xe-cores
0
Intel Quick Sync Video
No
Number of Displays Supported
0NPU Specifications
NPU Name
Intel AI Boost
NPU Peak TOPS (Int8)
13
Sparsity Support
Yes
Windows Studio Effects Support
Yes
AI Software Frameworks Supported by NPU
OpenVINO WindowsML DirectML ONNX RT WebNNExpansion Options
Direct Media Interface (DMI) Revision
4
Max Number of DMI Lanes
8
Intel Thunderbolt 4
Yes
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1×16+2×4 2×8+2×4 1×8+4×4
Max Number of PCI Express Lanes
24Package Specifications
Sockets Supported
FCLGA1851
Thermal Solution Specification
PCG 2022C
Max Operating Temperature
105oC
Package Size
45 mm x 37.5 mmAdvanced Technologies
Intel Gaussian and Neural Accelerator
3.5
Intel Thread Director
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Technology
2
Intel Hyper-Threading Technology
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1 Intel SSE4.2 Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
YesSecurity and Reliability
Intel Threat Detection Technology (TDT)
Yes
Intel Active Management Technology (AMT)
No
Intel Standard Manageability (ISM)
Yes
Intel Remote Platform Erase (RPE)
No
Intel One-Click Recovery
No
Intel Secure Key
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel Total Memory Encryption – Multi Key
No
Intel AES New Instructions
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel OS Guard
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Stable IT Platform Program (SIPP)
No
Intel Virtualization Technology with Redirect Protection (VT-rp)
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
YesItem Dimension (L”xW”xH”)
5 x 4 x 5
Weight
1.1 lbs
Warranty Information
3 Year Limited
