Description
This item is brand-new, factory sealed.

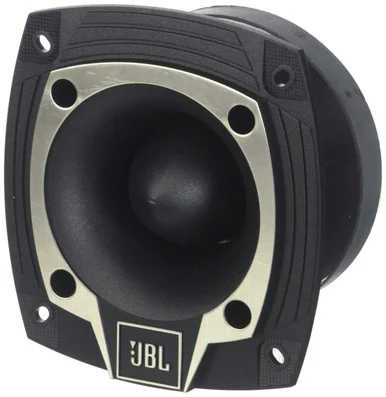

The super tweeter ST 302X features high efficiency and low distortion in the reproduction of high frequencies. It can be used in PA systems, automotive mini trios and in sound reinforcement systems. The base and the diffuser are made of aluminum, thus contributing to better heat dissipation from the moving coil, with a diamond machining finish and varnished. Its horn dispersion angle of 40×40 (HxV) is suitable for reaching long distances. Its phenolic diaphragm reproduces the treble with a pleasant timbre. The coil is built in the form of kapton and wound with CCAW type wire (copper clad aluminum wire) resistant to high temperatures. Magnetic assembly with aluminum ring guaranteeing high definition and efficiency throughout its reproduction range.
* Dimensions: 125 x 115 x 70 mm
* Rated impedance; 8 Ohms
* Weight; 1.4 kg
* Magnetic set weight; 1,280g
* System Frequency Response; 3,500 to 20,000 Hz
* Power Capacity RMS (NBR 10.303) (HPF 5.000 Hz) 80 Watts
* Power Capacity RMS (NBR 10.303) (HPF 8.000 Hz) 125 Watts
* Power Capacity MUSICAL PROGRAM (HPF 5.000 Hz) 160 Watts
* A crossover must be used with this product
