Description
This item is brand-new, factory sealed.

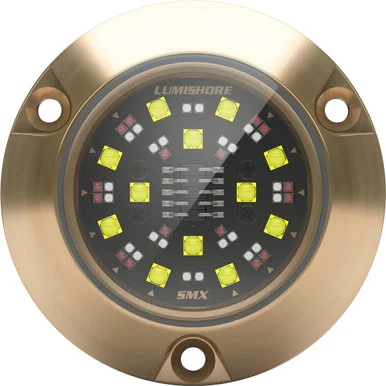

Lumishore SMX94 RGBW Surface Mount
Model: 60-0535 / 010-04506-00
As well as efficiency and performance, the SMX94 is unmatched in ease of installation due to its built-in driver and simple 2-wire connections.
Enjoy full-spectrum RGBW color change lighting, that packs a powerful 6,000 fixture lumens into a wide 90° beam.
Control the SMX94 with a standard on/off switch to cycle through colors; toggle to pause on any color in the spectrum or the ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull side installations.
Specifications
| AVAILABLE LED COLORS | FULL COLOR SELECT (RGBW) |
| LUMENS | 13,500 |
| VERIFIED FIXTURE LUMENS (WHITE) | 6,000 |
| NUMBER AND TYPE OF LED | White—125W / Green—123W / Blue—123W / Red—163W |
| LED POWER – HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 90° |
| DRIVER | Multi-Channel Internal Driver |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 3.5A/1.75A |
| HOUSING TYPE | MARINE GRADE BRONZE / GLASS LENS |
| USER CONTROL OPTIONS | STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER |
| Warranty | 3 YEARS |
