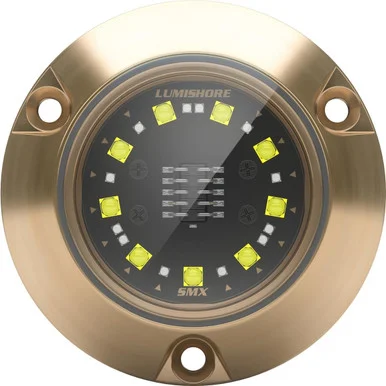

Lumishore ECLIPSE SMX24 Surface Mount Blue/White LED
Model: 600-0533 / 010-04504-00
Lumishore’s compact SMX24 features 3,100 fixture lumens in a wide 90° beam. 2-in-1 (blue and white) in a single surface mount fixture – each color runs at full power.
Integrated driver and simple 2-wire connections make the installation of this light easier than ever.
Control the SMX24 by a standard on/off switch or the ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull side installations.
Specifications
| AVAILABLE LED COLORS | DUAL COLOR (BLUE & WHITE) |
| LUMENS | 6,975 |
| VERIFIED FIXTURE LUMENS (WHITE) | 3,100 |
| NUMBER AND TYPE OF LED | White – 95W / Blue -12x3W |
| LED POWER – HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 90° |
| DRIVER | MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE | 12 V DC ONLY |
| MAX CURRENT DRAW | 2.5A |
| HOUSING TYPE | MARINE BRONZE BODY/ GLASS LENS |
| USER CONTROL OPTIONS | STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER |
| COLOR FADE CYCLE | YES |
| FIXED STROBES | YES |
