Description
This item is brand-new, factory sealed.

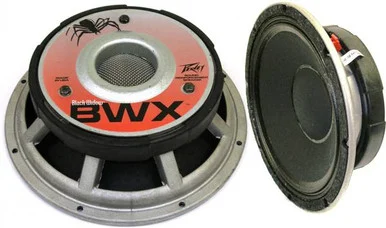

1208-8 SPS BWXT
* Impedance: 8 Ohms
* Power capacity: 2000 W Peak 1000 W Program 500 W Continuous
* Sensitivity: 96.9 dB / 1 W 1 m
* Usable freq. range: 50 Hz – 3.5 kHz
* Cone: Kevlarr impregnated cellulose
* Voice coil diameter: 4.0-in / 100 mm
* Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomexr stiffener Solderless diffusion welded OFHC copper leads
* Net weight lb. / kg: 16 lbs. / 7.3 kg
* Znom (ohms) 8
* Revc (ohms) 5.43
* Sd (Square Meters) 0.052
* BL (T/M) 15.13
* Fo (Hz) 56.1
* Vas (liters) 54.6
* Cms (uM/N) 142.2
* Mms (gm) 50.70
* Qms 9.51
* Qes 0.448
* Qts 0.428
* Xmax (mm) 4.70
* Le (mH) 0.36
* SPL (1W 1m) 96.9
* No (%) 3.10%
* Vd (cu. in. / ml) 29.8 / 488
* Pmax (Watts pgm.) 1000
* Disp (cu. in. / ml) 109 / 1797
* 12-in
* Weight Unpacked: 16.00 lb(7.257 kg)
* Weight Packed: 18.87 lb(8.561 kg)
* Width Packed: 15-in (38.1 cm)
* Height Packed: 16-in (40.64 cm)
* Depth Packed: 7″(17.78 cm)
Item # 00452830 1208-8 SPS BWX
12088SPSBWX (8ohms) 00560760
Specs
| Physical Characteristics | |
| Product Material |
|
| Weight (Approximate) | 16 lb |
| General Information | |
| Brand Name | Peavey |
| Product Type | Woofer |
| Product Name | 12088SPSBWX Woofer |
| Manufacturer | Peavey Electronics |
| Manufacturer Part Number | 12088SPSBWX |
| Product Model | 12088SPSBWX |
| Technical Information | |
| PMPO Output Power | 2000 W |
| Minimum Frequency Response | 50 Hz |
| Maximum Frequency Response | 3.50 kHz |
| Woofer Driver Material | Kevlar |
| Sensitivity | 97 dB |
| Application/Usage | Automobile |
| Woofer Driver Size | 12″ |
| Impedance | 8 Ohm |
| RMS Output Power | 1000 W |
