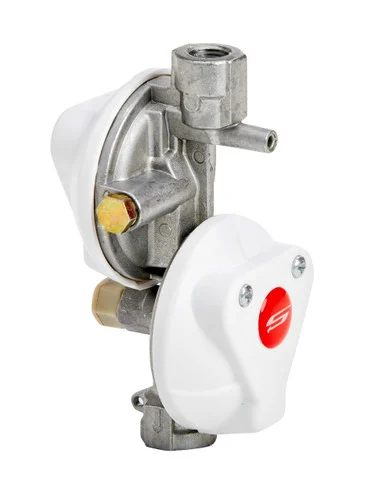

Suburban LPR524V Two Stage Regular Kit – Vertical Vent

Description

This item is brand-new, factory sealed.

Dicor Suburban Two-Stage Regulator Kit- Vertical Vent

• A combination regulator; first stage reduces cylinder outlet pressure to 10 psi, and the second stage maintains a stable working pressure of 11 inch water column
• Inlet: 1/4 inch Female Pipe Thread, Outlet: 3/8 inch Female Pipe Thread, horizontal vent, 160,000 BTU/hour
• Kit includes the plastic vent covers required by RVIA

• Manufacturer: Dicor
• Brand: Dicor
• Model: Two-Stage Regulator Kit
• Item Weight: 12.3 ounces
• Package Dimensions: 8.25 x 4.94 x 3.88 inches
• Item model number: LP-R524V
• Manufacturer Part Number: LP-R524V

Suburbans two-stage vertical vent propane regulator is a combination regulator that controls the flow of gas to all RV appliances. The First stage reduces the cylinder outlet pressure to 10 psi and the Second stage maintains a stable working pressure of 11 water column. For use on RVs with single horizontal or vertical tank. Kit includes the plastic vent covers required by RVIA. Safety features include: An Excess Flow Device: Ensures protection with all hose connections. Limits gas flow in the event of hose rupture or accidental disconnection. An Overpressure Protection Device: A feature that operates to shut off the flow of gas in case of regulator malfunction when the regulator outlet pressure reaches the limits. This limits environmental propane release to a value less than 2 psi, significantly lower than that mandated by UL standard 144. Such a feature shall remain closed until it has been manually reset. Inlet: 1/4 inch Female Pipe Thread, Outlet: 3/8 inch Female Pipe Thread, horizontal vent, 160000 BTU/hr. UL Listed.
