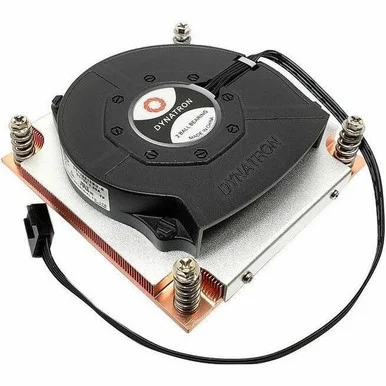

Dynatron J12 Cooling Fan/Heatsink

Description

This item is brand-new, factory sealed.

J12
Recommend for AMD Genoa Processor Family, Socket SP5, Aluminum Stacked Fins with Heat Pipes and Copper Heat Spreader Embedded in Aluminum Heatsink Base, Support up to 320 Watts CPU Power Heat Dissipation.CPU Support
AMDCPU Socket
Genoa, Socket SP5Solution
3U Server and UpMaterial
Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Aluminum Heatsink BaseFan Dimension
80 x 80 x 38 mmSpeed
At Duty Cycle 20%: 2400 +/- 200 RPM
At Duty Cycle 50%: 4800 +/- 10% RPM
At Duty Cycle 100%: 8000 +/- 10% RPMRated Voltage
12VBearing
Double BallPower
At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 WAir Flow
At Duty Cycle 0-20%: 32.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFMNoise Level
At Duty Cycle 20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBAAir Pressure
At Duty Cycle 20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2OLead Wire Pin Out
Pin Number 1-Black(-)
Pin Number 2- Yellow(+)
Pin Number 3- Green(Tachometer/ Signal Output)
Pin Number 4- Blue (PWM)Thermal Grease
Shin-Etsu 7762 Pre-printedItem Dimension (L”xW”xH”)
6 x 5 x 6
Weight
2.1 lbs
Warranty Information
1 year

Features

Application/Usage:

Processor
CPU

Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
